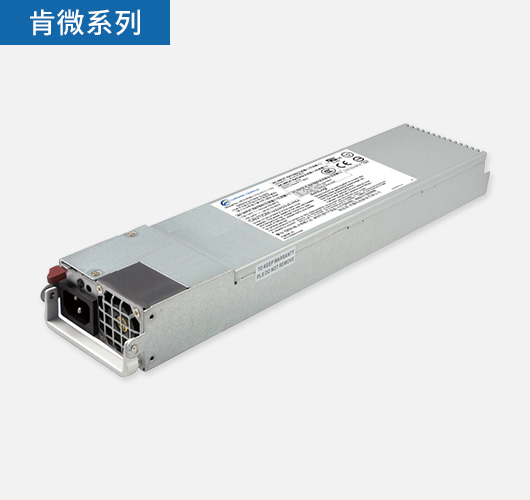

4000-690-986
| Input | |
| Voltage | 90 - 264Vac |
| Frequency | 47 - 63Hz |
| Current | 100 - 127Vac / 15 - 12A |
| Output | |
| Voltage | +12V / +5Vsb |
| Regulation | ±5% / ±5% |
| Max Load | 1200W : 100A/1000W : 83A/4.0A |
| Ripple & Noise | 120mVp-p/50mVp-p |
| General | |
| Hold-up time | 12ms @ 75% load |
| Efficiency | At least 96% @ 50% load |
| MTBF | 200,000 hours at 25°C |
| Environmental | |
| Temperature | Operating: 0 to 50°C |
| Altitude | Operating: 16,500 feet |
| Relative humidity | Operating: 20% to 90% RH |
